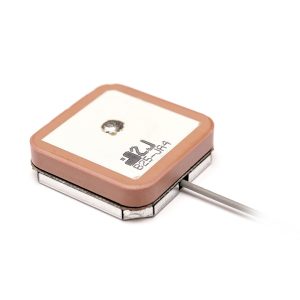

High Precision GNSS/GPS/SBAS/IRNSS/L1/L5 Active Stacked Patch Antenna

Description

Technologies GPS/Glonass/Beidou/QZSS/Galileo/IRNSS/SBAS/L1L5
Bandwidth (MHz) 1176, 1561-1606
Bands L5, L1
Frequency 1176.45, 1561.098, 1575.42, 1602.00
Standards GPS(L5), BeiDou(B2a , QZSS(L5), Galileo(E5a), IRNSS(L5), GPS(L1C), GLONASS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1)
Return Loss (dB) ~-15.7, ~-14.5
VSWR ~1.4:1, ~1.5:1
Passive Peak Gain (dBi) ~0.9, ~1.3
Impedance (Ohm) 50
Radiation Pattern Hemispherical
Axial Ratio (dB) 3dB max
Polarisation RHCP
Voltage (V) 1.5 – 6
Active Gain (dB) 28 @ 3 V
Noise Figure (dB) 1.6 @ 3V
Current Consumption (mA) 16 @ 3V
Power Consumption (mW) 48 @ 3V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) ~40
ESD Protection (kV) 2
