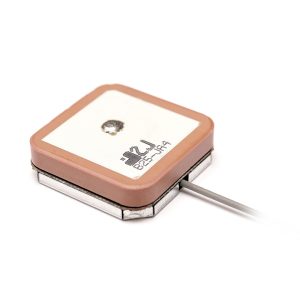

GPS/GLONASS/Galileo 1575-1606 MHz Pre-Filter Embedded Antenna

Mounting Snap-in Mount Module
Dimensions (mm) 18 x 18 x 7.3
Operating temperature -40 °C to 85 °C

GPS/GLO/QZSS/Galileo/L1

Compare

Description

Standards GPS/GLONASS/QZSS/Galileo
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~3.6
Impedance (Ohm) 50
Voltage Range (V) 1.5 – 3.6
Active Gain (dB) 14 @ 2.7 V
Noise Figure (dB) 1.5 @ 2.7 V
Current Consumption (mA) 4 @ 2.7 V
Power Consumption (mW) 10.8 @ 2.7 V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 6
